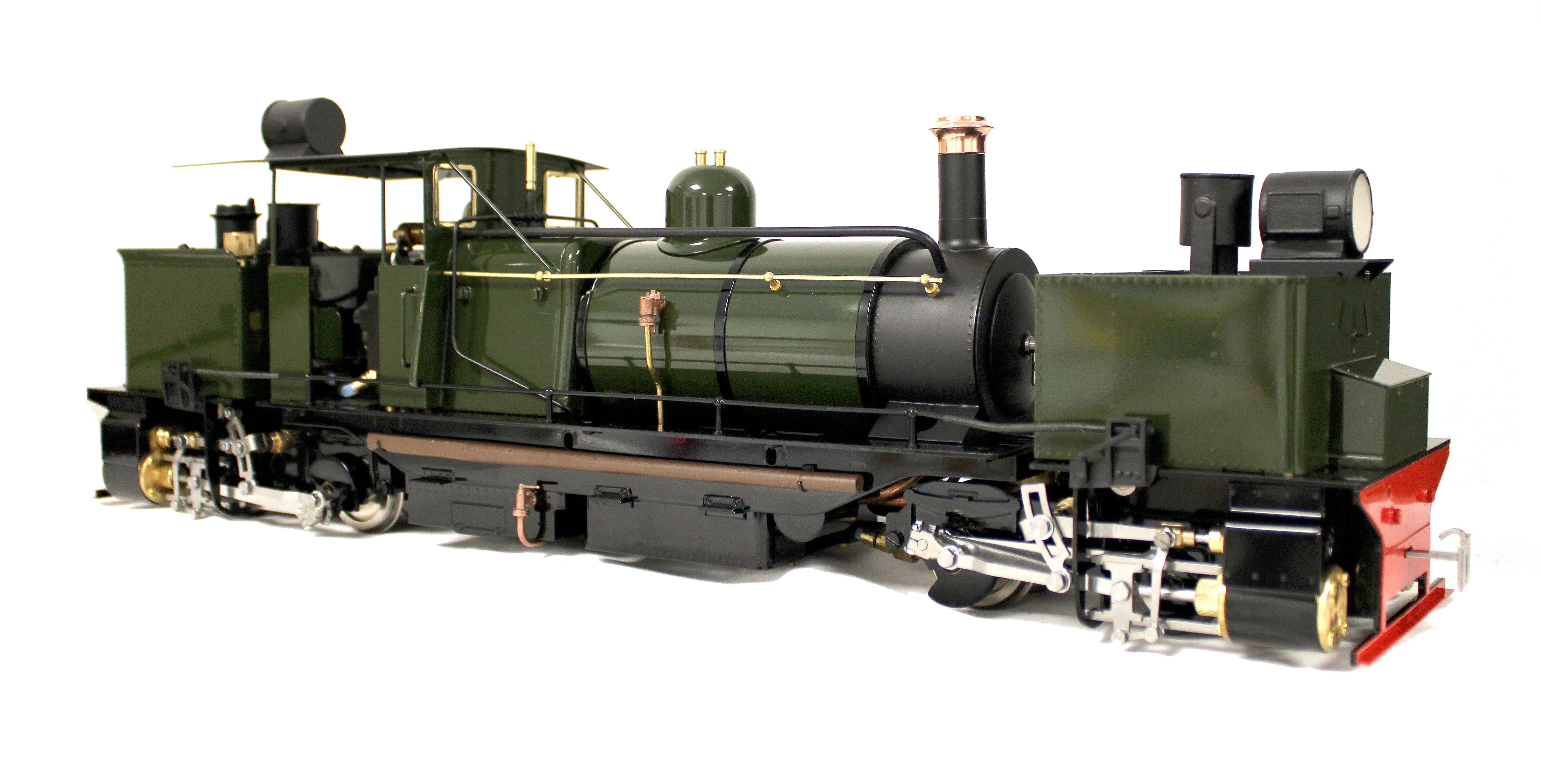

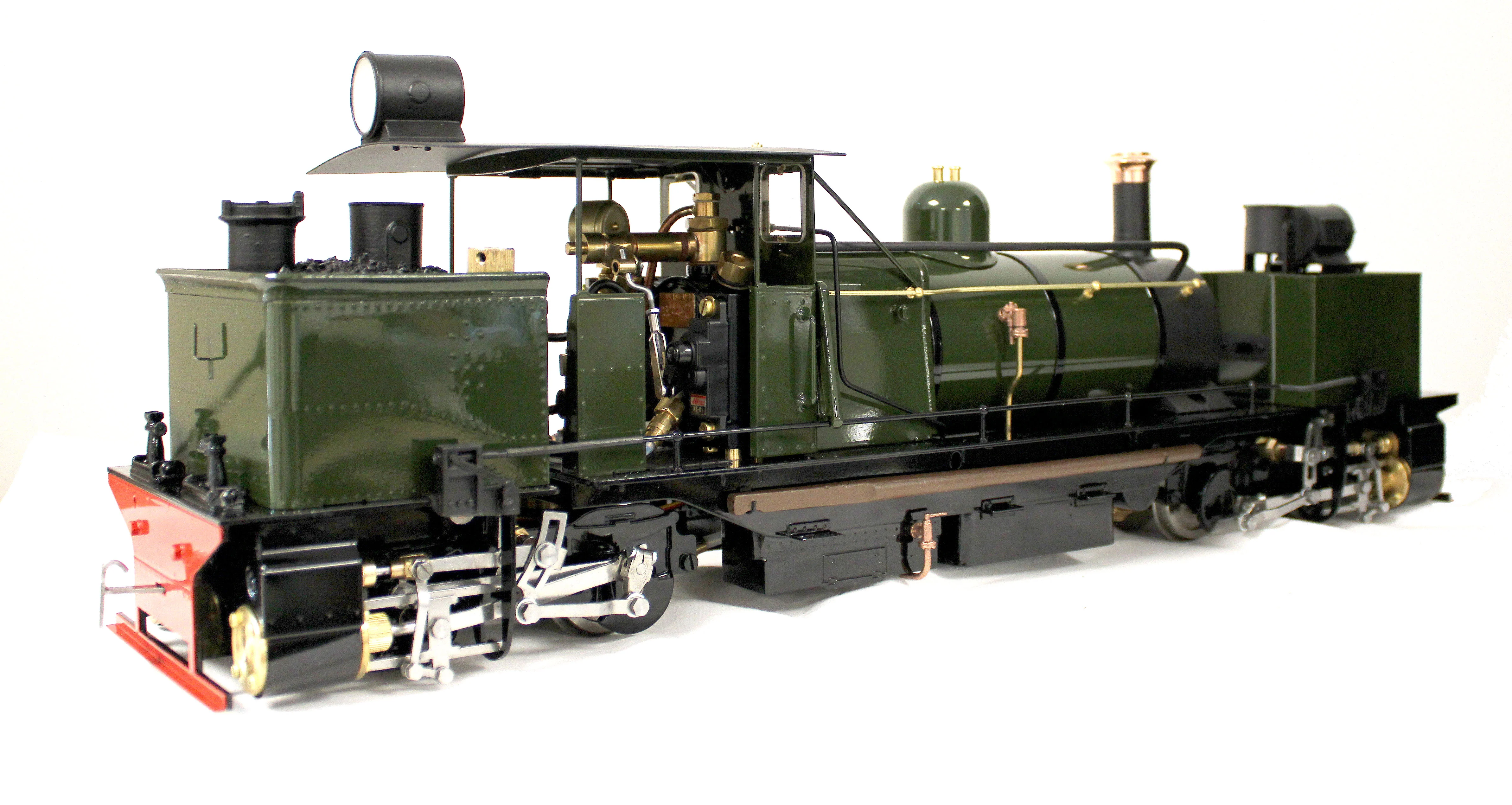

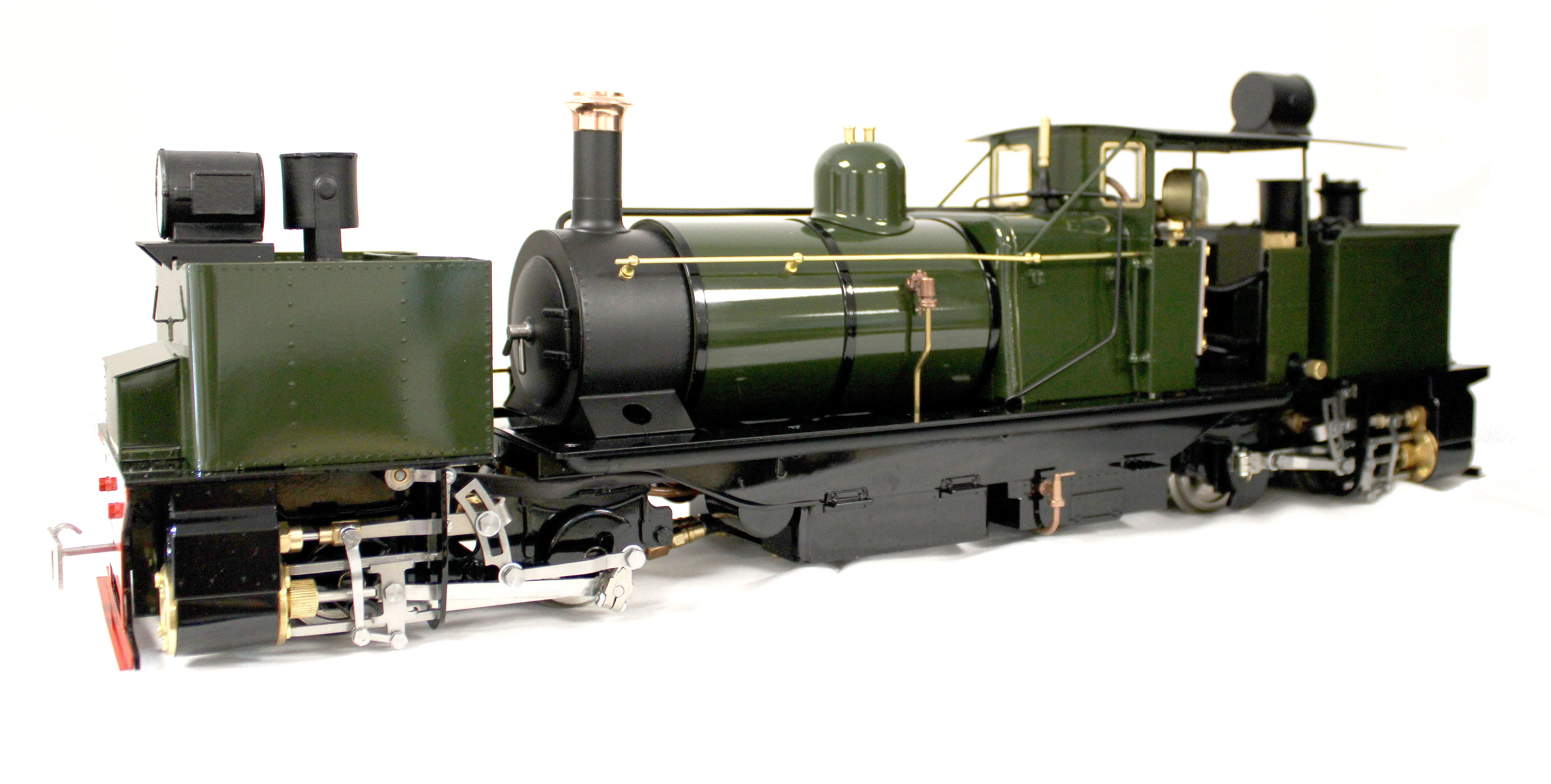

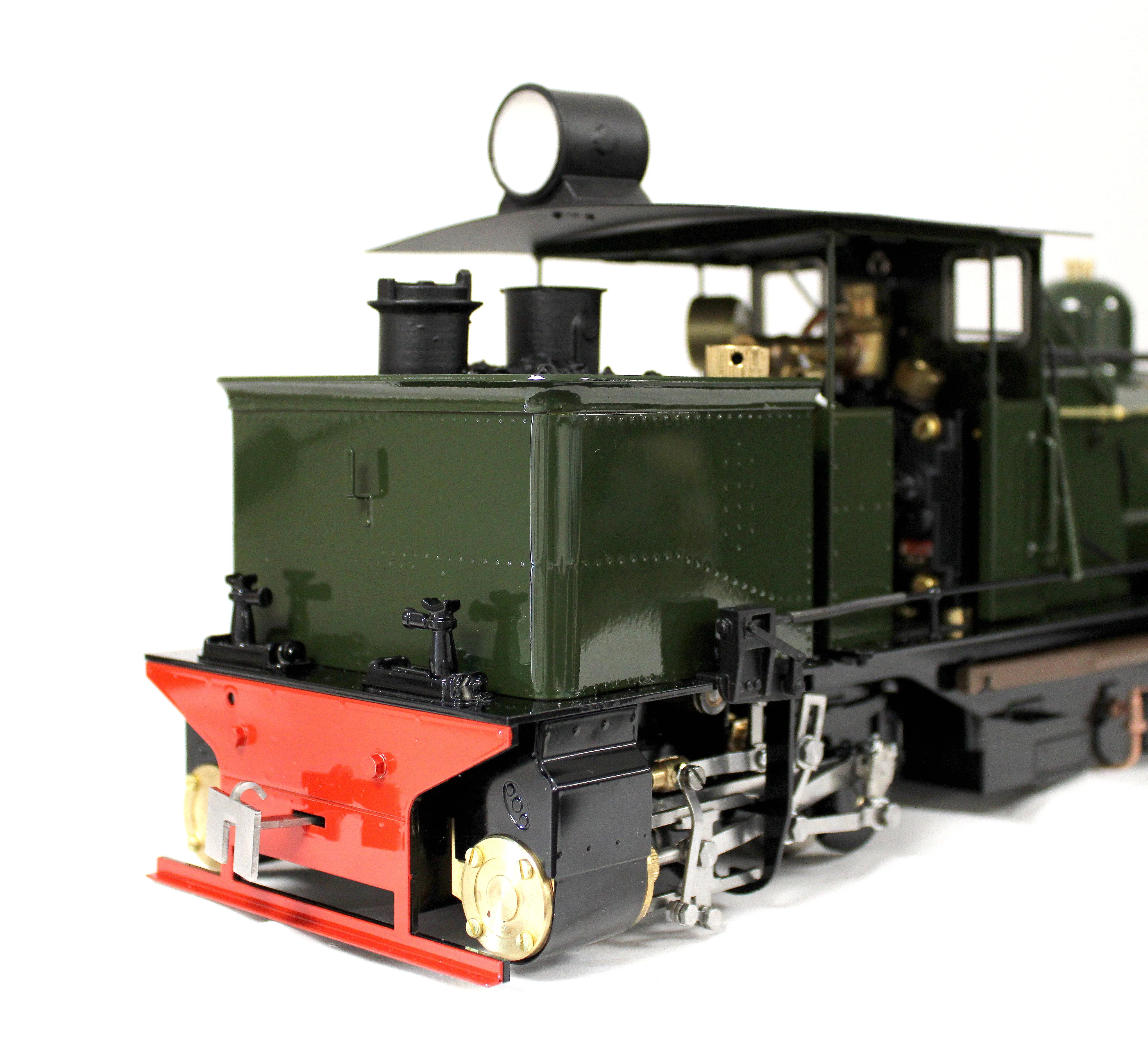

GARRC-BRONZEGREEN-I Class D 0-4-0 'Darjeeling Garratt' Deep Bronze Green (Radio Control, Insulated Wheels) Steam Locomotive
Expected Delivery September 2026 (Subject to Change at Manufacturer's Discretion).
Built by Beyer Peacock & Co Ltd. at their Manchester works, the Garratt locomotive was delivered to the Darjeeling Himalayan Railway in 1911 and was put into service on the 30th of June. It was assigned by the DHR as Class ‘D’ and given the running number 31. The locomotive was thought to have carried the name ‘Highland Chief’ for a short period in the 1920s and was regularly seen working between Tindharia and Darjeeling.
It finally earned its keep on the extension lines hauling loads of 200 tons, and was eventually scrapped in 1954.
Technical specifications for the Darjeeling 'D' Class Garratt:
- Internal gas firing using our new ‘FG2’ type burner.
- Outside framed 0-4-0+0-4-0 chassis’ with four double acting slide valve cylinders operated by simplified Walschaerts valve gear.
- Water top-up system and water gauge.
- Controls fitted as standard are :- steam regulator, safety valve, pressure gauge, displacement lubricator, gas regulator and reversing gear.
- Glazed cab spectacles.
- Dimensions (loading gauge) are, Length 532mm over buffers, Width 116mm, Height 170mm.
- Full radio control is available for both regulator and reversing valve gear using 2.4GHz R/C.
- The wheels are adjustable between 32mm and 45mm gauge.
- Fitted with insulated wheels as standard.
- Supplied with etched brass works plates.
- This model requires a minimum track radius of 2' 6" (760mm).
PLEASE NOTE: This model comes with insulated wheels.
