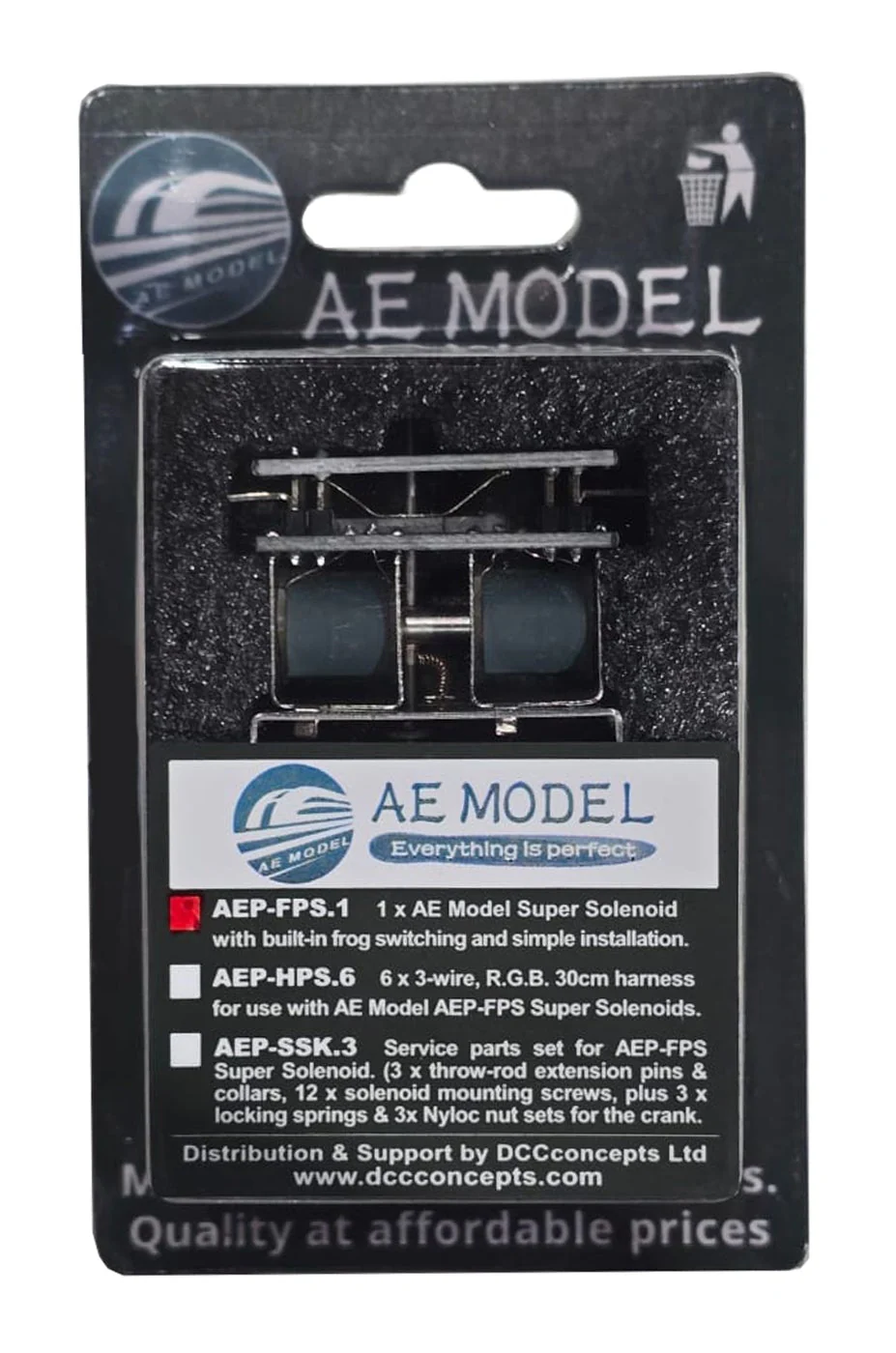

AEP-FPS.1 AE Model Super Solenoid (Single Pack)

AE Model Super Solenoid (Single Pack)

Finally, a *Super Efficient *Easy to Install *Plug & Play Solenoid!

Easy to install and highly efficient, the AE Model Super-Solenoid is strong but also surprisingly gentle in action, so it won’t damage hand-made or fine scale turnouts like conventional solenoids do. It also has a gentle latching spring so it is equally comfortable with loose-blade turnouts or those that have tie-bar springs. Even handmade turnouts with one-piece point blades are held in position well & work as they should!

Features:

• Extended pin for manual test operation.

• Simple under-board or surface mount installation.

• Switch control board with dual switch wipers for super high reliability switching under load.

• Control terminals for built-in frog switching – plug & play lead is included.

• Stainless steel frame for long life and reliability.

• 4x mounting holes for secure fixing – with screws included.

• Long throw pin to allow for thicker baseboards.

• Dual arm crank allowing above board installation and giving a secondary drive option for signals.

• Gentle spring controlled latching which makes the throw action more gentle on turnouts with spring-latched blades whilst ensuring that turnouts with continuous point blades remain thrown under blade pressure.

• Super-high efficiency 12 Ohm solenoid coils that need only 1/3 of the power required by most other solenoid brands, improving reliability and performance.

• Power input terminals for solenoid provide power via normal solenoid wiring, CDU or accessory decoder, with a plug & play lead included.
